Mini Lathe–Mill–Drill Combo Machine – 3-in-1 Metalworking Centre

Mini Lathe-Milling Machine Instruction Manual

Product Overview

The mini lathe-milling machine is a desktop-level multifunctional processing equipment with high portability and flexibility, suitable for various scenarios.

Feature

1.Powerful processing ability

- Lathe: Equipped with a 100W motor and an 80 manual three-jaw chuck. The maximum processing diameter is 60mm and the length is 160mm. It can process various materials such as copper, iron, aluminum, 304 stainless steel, and 45 steel.

- Milling machine: Comes with a 100W motor and can process copper and aluminum.

- Capable of performing various processing operations such as turning, milling, and drilling to meet different processing needs.

2.Up grad ability

- Motor upgrade: Can be upgraded to a 200W or 350W high-torque motor to enhance processing ability.

- Whole machine upgrade: The entire machine can be upgraded to a CNC system to achieve high-precision processing operations such as threading and milling threads.

3.High play ability

Inspires users' creativity and allows for personalized processing and transformation according to different needs.

III. Product Parameters

1. Product size: 610/610/510 mm (Length Width Height), weight: 33KG.
2. Packaging size: Carton 550/450/200mm (Length Width Height), weight: 35KG (loose parts packaging).
3. Lathe spindle motor power: 100W, input voltage AC 220V, maximum speed 4500 rpm±5%.
4. Milling machine spindle motor power: 100W, input voltage AC 220V, maximum speed 4500 rpm±5%.
5. XYZ travel: 140mm.
6. Tail stock: Chuck size ≤4mm, stroke of chuck: 35mm, tail stock stroke: 160mm. (The chuck and tail stock can operate independently.)
7. Lathe spindle: Standard with an 80 chuck. The spindle through hole is 16mm. The maximum speed is 2000rpm (adjustable speed), and the reduction ratio is 2.25.
8. Turning length: ≤160mm.
9. Milling machine spindle: ER11 powerless spindle. Tool size ∅1~7mm. The maximum speed is 2600rpm (adjustable speed), and the reduction ratio is 1.67.

350W vs 680W Rotor Comparison

Other options：Lathe tools, milling cutters, chucks, and centers.

Transportation Method

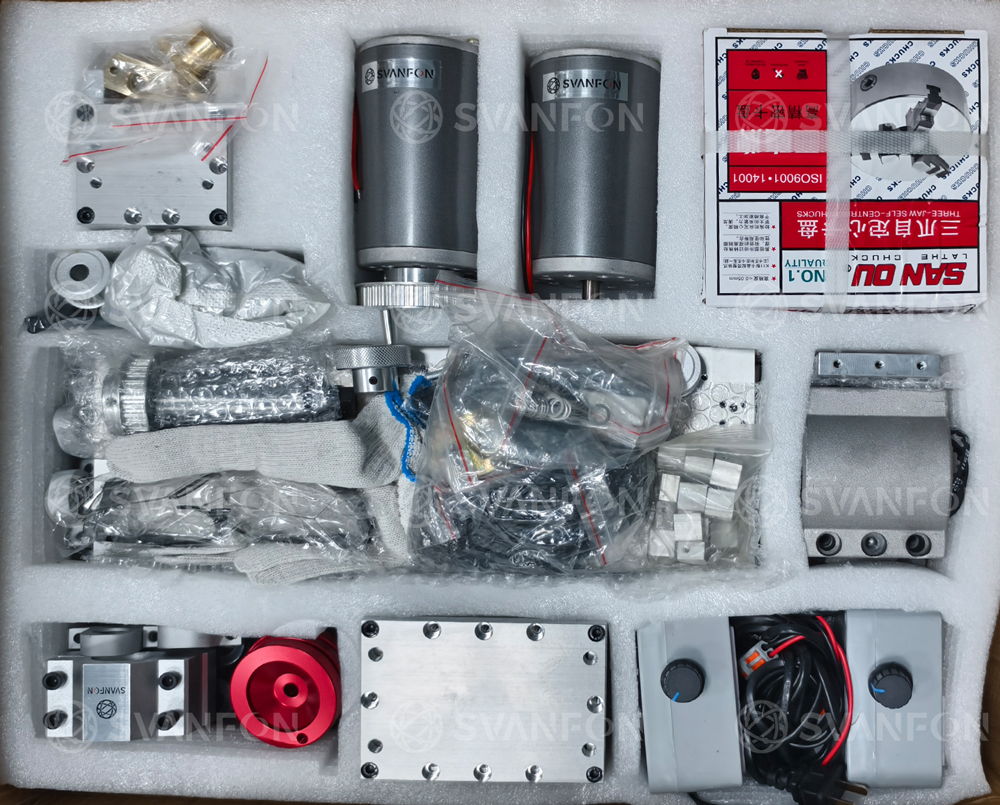

1. In the form of parts (default way, comes with video assembly tutorials).
2. Assembled finished product way (not recommended for export countries as it requires a relatively high cost).
