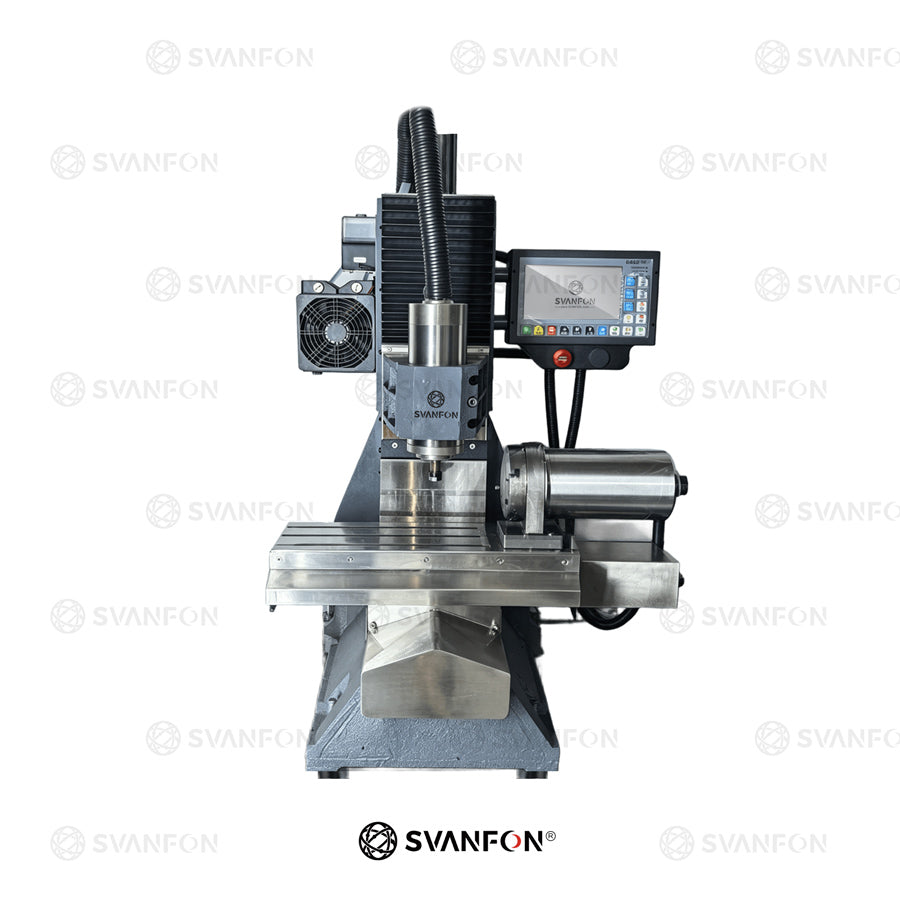

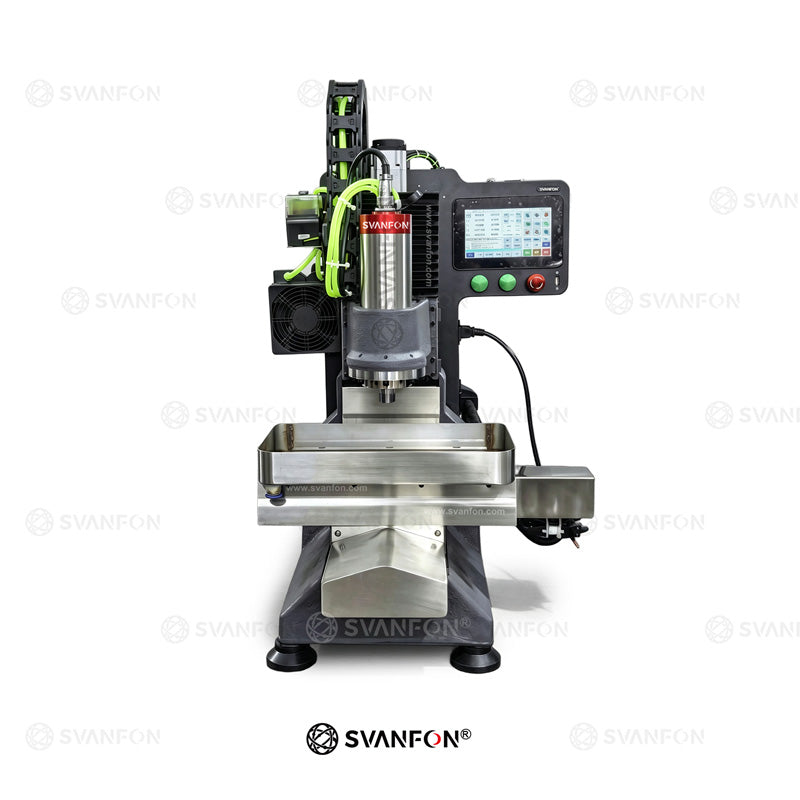

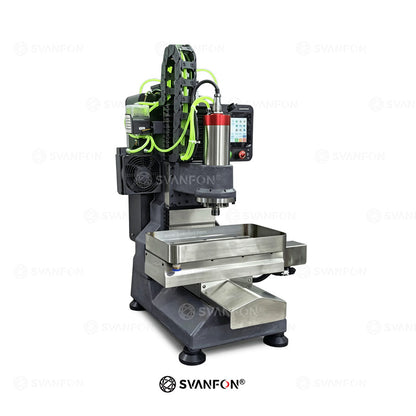

CNC214 Mini CNC Milling Machine – Metal Engraving & Cutting Mill | SVANFON

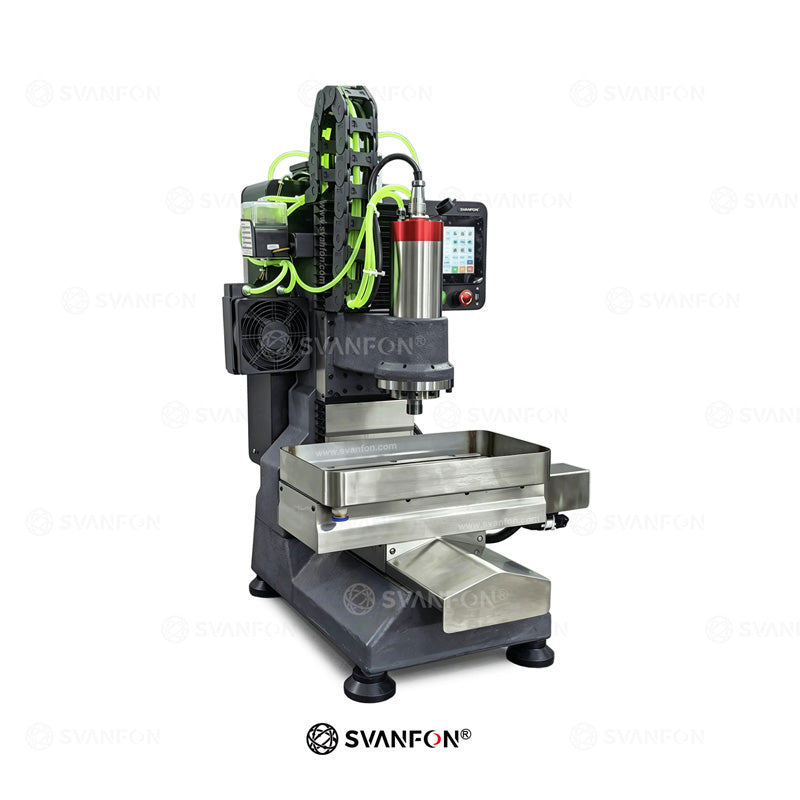

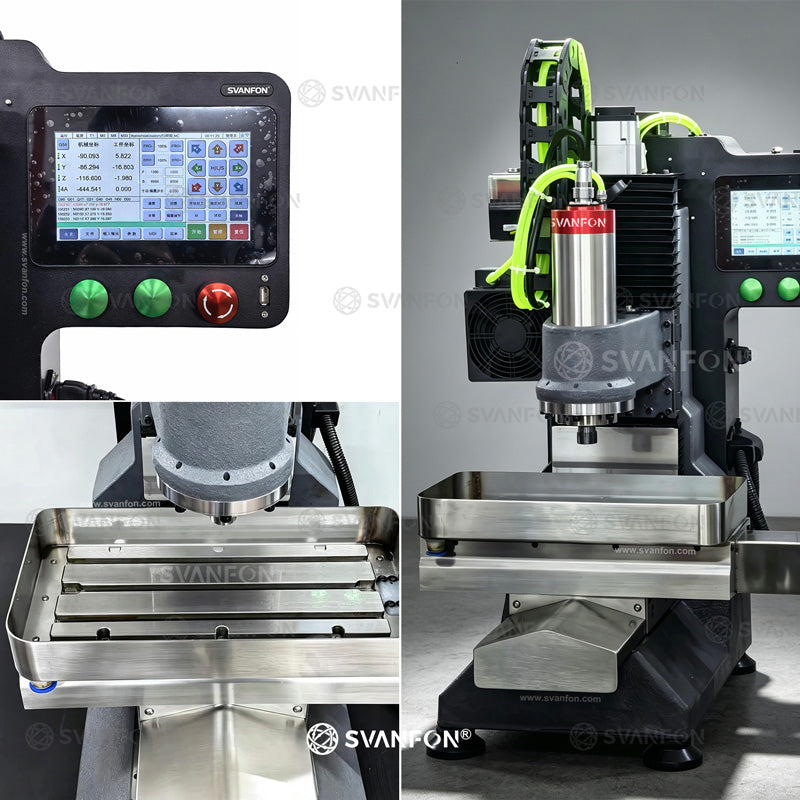

The SVANFON CNC 214 is a compact 3-axis CNC machining center designed for precision machining, prototyping, engineering workshops, education, and small-batch production.

With a 200 × 140 × 180 mm working travel, 400W servo motors, a 2.2kW spindle motor, C5-ground ball screws, and stainless-steel protection for the guideways and ball screws, the CNC 214 provides a compact yet rigid machining solution for a wide range of metalworking applications.

Key Features

3-axis machining: X 200 mm / Y 140 mm / Z 180 mm travel
400W servo motors on all three axes
Z-axis servo motor with brake for improved vertical-axis holding
C5-ground SFU1605 ball screws for accurate and stable motion
HG15 linear guideways with 4 blocks on each axis
C5 BK12 ball screw support units
2.2kW spindle motor for metalworking applications
Full stainless-steel protection for the ball screws and linear guideways on all three axes
Compact machine design with an overall weight of approximately 140 kg
Positioning accuracy: ≤ ±0.03 mm
Repeatability: ≤ ±0.01 mm
3-axis perpendicularity: < 0.02 mm

Technical Specifications

Specification	CNC 214
Machine Type	3-Axis CNC Machining Center
X-Axis Travel	200 mm
Y-Axis Travel	140 mm
Z-Axis Travel	180 mm
Ball Screws	SFU1605, C5 Ground
Linear Guides	HG15
Guide Blocks	4 per Axis
Ball Screw Support	BK12, C5
Axis Motors	400W Servo Motors
Z-Axis Brake	Yes
Spindle Motor	2.2kW
Spindle speed	24000rpm
Guideway & Ball Screw Protection	Full Stainless-Steel Protection
Positioning Accuracy	≤ ±0.03 mm
Repeatability	≤ ±0.01 mm
3-Axis Perpendicularity	< 0.02 mm
Machine Weight	Approx. 140 kg
